Phoenix (2 hour and 4 hour) Fire Rated Tanks

Our Phoenix (2 hour and 4 hour) Fire Rated tanks are a premium product in flammable and combustible liquid storage. Designed, tested and manufactured in New Zealand, this robust tank has the internationally recognised test standard (SwRI) tick of approval. Think high-performance and protection in one versatile solution.
Durable and adaptable

Typical applications:

Generator supply,

Boiler supply,

Aviation storage and dispensing,

Chemical and flammable liquid storage

Contact us to design a solution for you.

Why a fire rated tank
A fire rated tank must meet strict testing and manufacturing requirements to become a fire rated and multi-hazard certified tank.
Benefits- Improved site design with:

Reduced separation distance from protected place,

Above ground storage of flammable products,

Reduced hazardous area zone for flammable liquids

Can be housed inside a building for generator or boiler supply,

Mitigates a protective barrier or fire rated screen cost

Worksafe Design Approvals
Complies with: SwRI 95-03, UL2085, AS1940, UL142, AS1692 Health and Safety at Work (Hazardous Substance) Regulations 2017.
Design App # Tank 2Hr or 4Hr Capacity and configuration
TNK20265 2 Hr Fire Rated tank 1200L-110,000L
Single Compartment
TNK20230 4Hr Fire Rated tank 20,000L- 110,000L
Multi-Compartment
TNK20235 4Hr Fire Rated tank 1200L – 110,000L
Single Compartment
TNK20238 4Hr Fire Rated tank 850L-10,000L
Rectangular profile

Design App #:
TNK20265

Tank 2Hr or 4Hr:
2 Hr Fire Rated tank

Capacity and configuration:
1200L-110,000L Single Compartment

Design App #:
TNK20230

Tank 2Hr or 4Hr:
4Hr Fire Rated tank

Capacity and configuration:
20,000L- 110,000L Multi-Compartment

Design App #:
TNK20235

Tank 2Hr or 4Hr:
4Hr Fire Rated tank

Capacity and configuration:
1200L – 110,000L Single Compartment

Design App #:
TNK20238

Tank 2Hr or 4Hr:
4Hr Fire Rated tank

Capacity and configuration:
850L-10,000L Rectangular profile

What does a SwRI 95-03 test mean?
The SwRI 91-03 test, conducted by the Southwest Research Institute (SwRI) in San Antonio Texas, this involves exposing the test tank to high-intensity (1000 deg C) fire for 4 hours while ensuring the primary tank temperature does not exceed 100 deg C (Approx). This is followed by a hose stream test identical to a fire fighting scenario, then a ballistics test with a 30 calibre rifle and a simulated heavy vehicle impact test. Once these tests are passed the tank undergoes a final 2 hour fire test with the same criteria as the 4 hour fire test.
Why a Carlyon Phoenix tank?
At Carlyon we do not just build tanks, we develop and build infrastructure solutions for your business. Design and build solutions for fuel tanks, foundations, pumping, pipework, control system.

Let us take care of your complete solution including P&ID, construction drawings and a Site Dossier to enable Hazardous Substance Certification.

Our experience and skill ensures a design and build solution for your project from concept design right through to commissioning and HSNO compliance.

Thinking the Phoenix Fire Rated tank might be suitable for your business or want to learn more about our fire rated solutions, reach out to our team.
You may also like

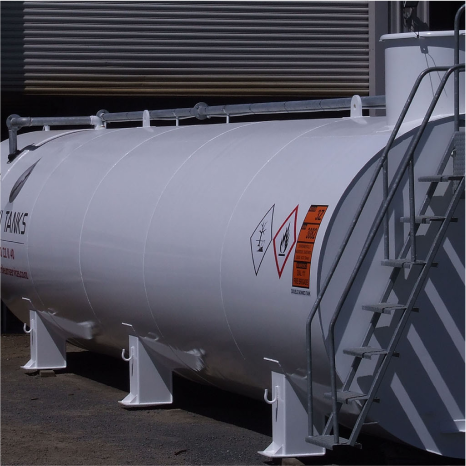

Bulk Tanks

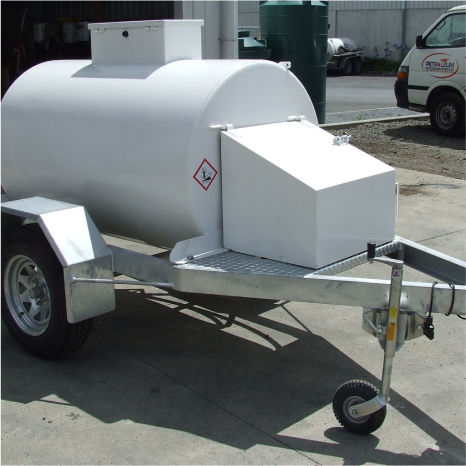

Mobile Fuel Tanks
